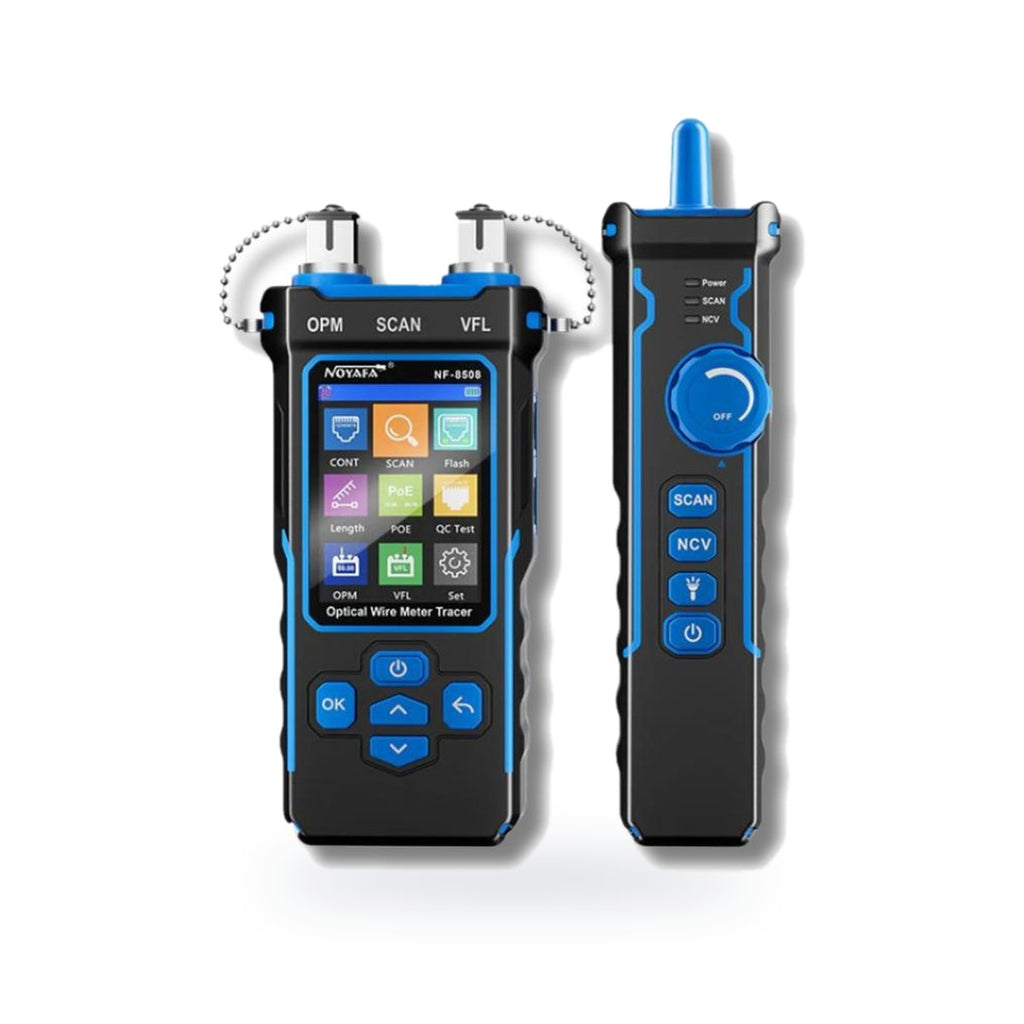

NOYAFA NF-8508 9-in-1 Network & Fibre Cable Tester (OPM + VFL)
Rs.33,300.00
Skip to product information
NOYAFANF-8508In stock
NOYAFA NF-8508 9-in-1 Network & Fibre Cable Tester (OPM + VFL)
Rs.33,300.00
Order on WhatsApp
Send us the model and your city. We reply quickly.
- Cash on deliveryPay when your parcel arrives
- Delivery across PakistanShipped from Lahore
- Genuine NOYAFAOriginal tester and accessories
- Technical helpSetup advice on WhatsApp
Nine tools in one kit for copper and fibre. Wire mapping, digital tracing, length, PoE and crimp test for Ethernet, plus an optical power meter and 10 mW visual fault locator for fibre.
Key features
- 9 functions. Wiremap, tracing, port flash, length, PoE, crimp test, OPM, VFL and NCV.
- Digital anti-interference tracing. High sensitivity with less noise, for shielded and unshielded cable.
- Optical power meter. Measures power at 1310 / 1550 / 1625 nm with automatic wavelength recognition.
- 10 mW VFL. Red laser with steady, fast and slow flash to find fibre breaks and bends.
- Length 2.5-200 m. Plug in one end to measure cable length.
- Single-end crimp test. Check RJ45 crimping even when only one end is available.
Specifications
| Model | NF-8508 |
|---|---|
| Cable types | CAT5 / CAT6, single-mode fibre |
| Scan frequency | 455 kHz |
| Length accuracy | ±1.6 m up to 20 m; ±2.4 m to 100 m; ±3.2 m over 100 m |
| PoE | af / at, end-span, mid-span, 8-core |
| OPM wavelengths | 1310 / 1550 / 1625 nm |
| VFL | 10 mW |
| Voltage protection | 60 V |
| Battery | 3.7 V 1500 mAh, Type-C |
Ideal for: FTTH and fibre installers, structured cabling, data centres
