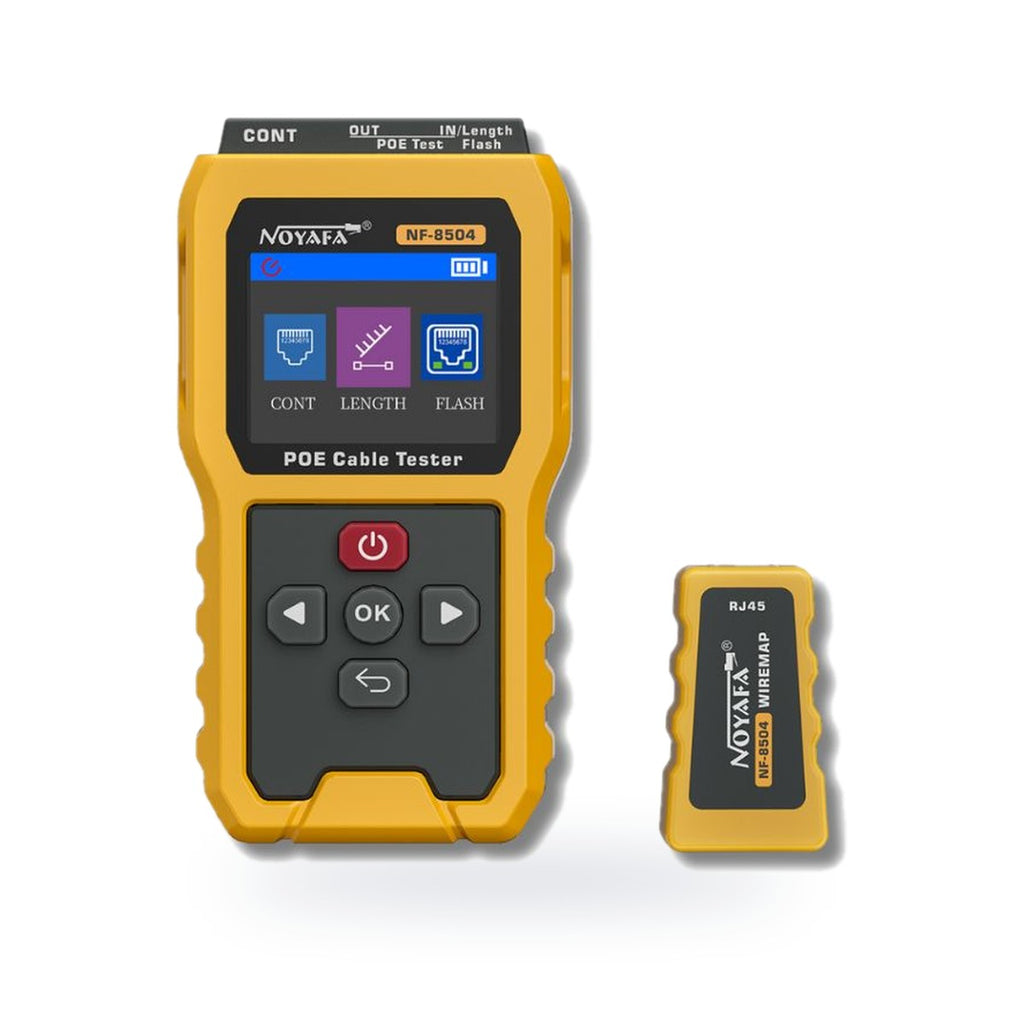

NOYAFA NF-8504 PoE Cable Tester with 2.4" Colour Screen
Rs.19,400.00
Skip to product information
NOYAFANF-8504In stock
NOYAFA NF-8504 PoE Cable Tester with 2.4" Colour Screen
Rs.19,400.00
Order on WhatsApp
Send us the model and your city. We reply quickly.
- Cash on deliveryPay when your parcel arrives
- Delivery across PakistanShipped from Lahore
- Genuine NOYAFAOriginal tester and accessories
- Technical helpSetup advice on WhatsApp
A colour-screen LAN tester built around PoE. It checks continuity, cable length and switch ports, and tests PoE power under real load up to 80 W.
Key features
- PoE test DC 5-60 V. Supports IEEE 802.3af / at / bt and non-standard PoE, with 2-80 W load testing.
- Continuity and wiremap. Checks every pair on CAT5 / CAT6 for open, short or miswiring.
- Length 5-300 m. Measures cable length and distance to a fault.
- Port flash. Identifies the switch port and shows 10/100/1000 speed and duplex.
- 2.4-inch colour LCD. Clear icons and results, even in low light.
- 1500 mAh battery. USB-C charging, auto-off at 15 / 30 / 60 minutes.
Specifications
| Model | NF-8504 |
|---|---|
| Display | 2.4-inch colour LCD |
| Cable types | CAT5 / CAT6, STP & UTP |
| Continuity range | 600 m |
| Length range | 5 to 300 m |
| PoE range | DC 5-60 V, IEEE 802.3af/at/bt |
| Load test | 2-80 W |
| Voltage protection | DC 60 V |
| Battery | 3.7 V 1500 mAh lithium |
| Size | 138.5 x 76 x 30 mm |
Ideal for: PoE camera and access point installs, office networks
